Iron Oxide pigments

Iron Oxides are CATHAY INDUSTRIES’ core business. As the third largest iron oxide manufacturer in the world, CATHAY INDUSTRIES provides a wide range of iron oxide pigments from economical grades for construction applications, to high-quality CATHAYCOAT™ for top coating, and the highest-purity CATHAYPURE™ for cosmetics.

CATHAYCOAT™ is CATHAY INDUSTRIES’ premium range of iron oxides. It’s made for top coating and fine-quality products like paints, plastics and paper. CATHAYCOAT™ can be divided into four subcategories, from the most-premium micronized “A” grades and LV grade, to standard “S” grades, and more economical ”C“ grades and Primer grades.

  • icon01
  • icon02
  • icon03
  • icon04
  • icon05
  • icon06
  • icon07
  • icon08

Micronized A Grade

CATHAYCOAT™ Micronized A grade iron oxides are pigments with premium properties for the stringent requirement of high quality top coatings. With extra well dispersing properties, they can be used directly for high-speed dispersing without further milling. Therefore, it saves time, energy and labor during the production of paints, dispersions and other final products.

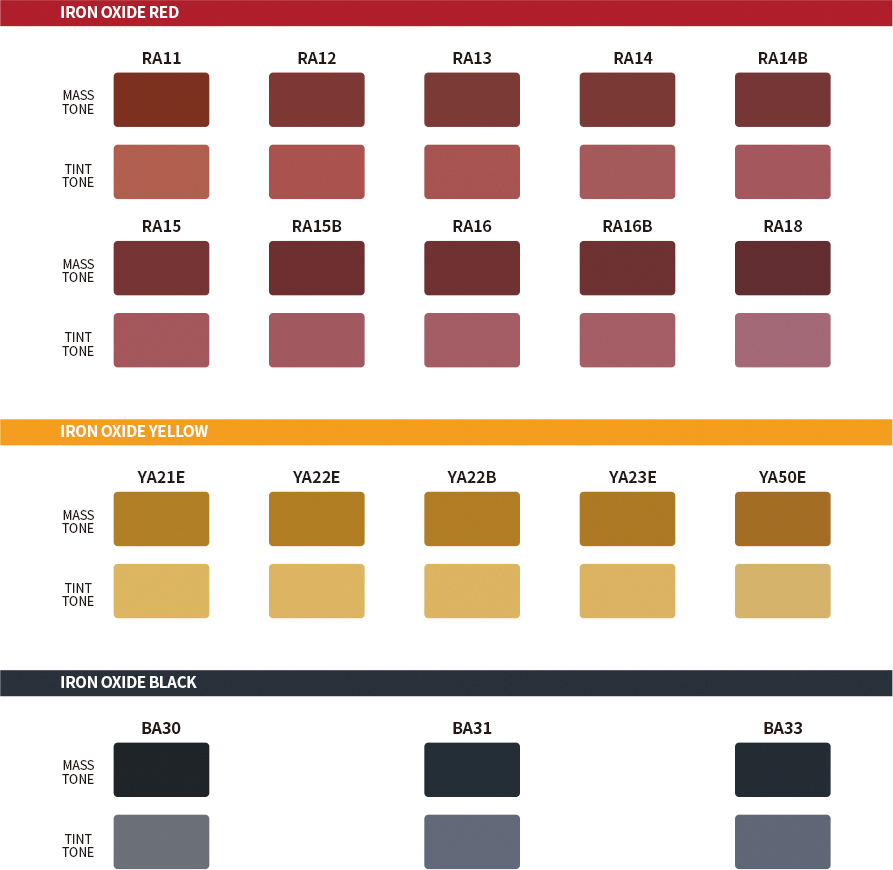

CATHAYCOAT™ Micronized A Grade Colors Represent Mass Tone and Tint Tone (Reduction with TiO2 1:4)

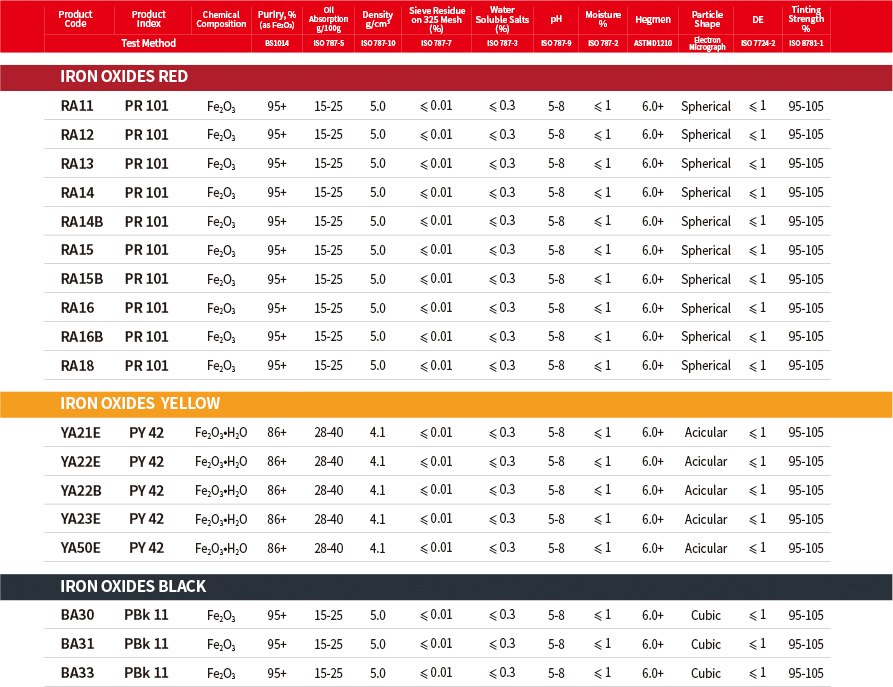

Typical Physical Properties (Micronized A Grade)

The color chips represented here are as accurate as the printing process will allow, it may be slightly different from actual shades.
This is for your reference ONLY.Please pay attention to the samples we send to you.

REQUEST FOR TECHNICIAL SUPPORT AND CONSULTATION

Standard S Grades

CATHAYCOAT™ S grade iron oxides is a range of high-quality pigments with attractive prices for paints, plastics, paper and dispersions. Extra milling or dispersant additives can be added to customize and improve the final product.

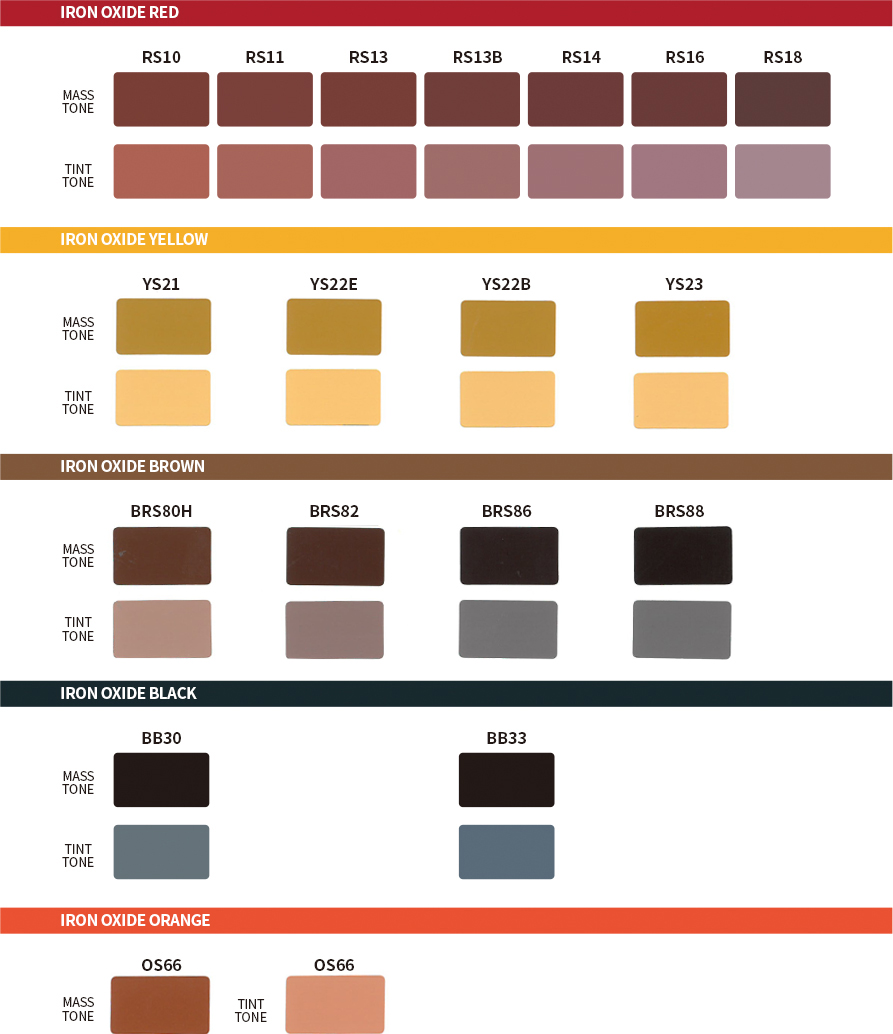

CATHAYCOAT™ Standard S Grade Colors Represent Mass Tone and Tint Tone (Reduction with TiO2 1:4)

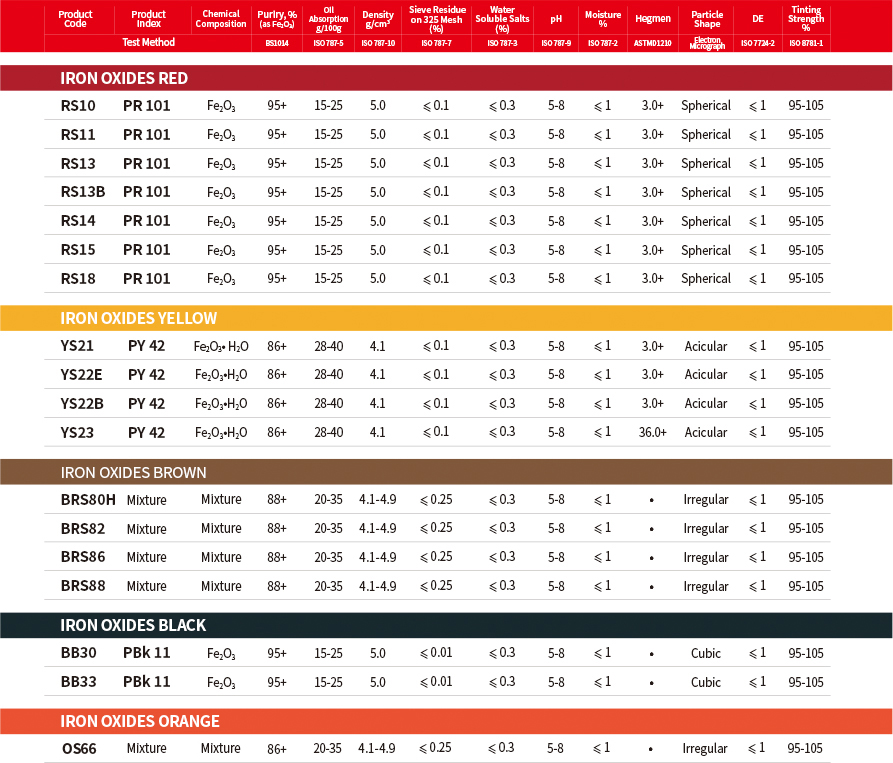

Typical Physical Properties (Standard S Grades)

The color chips represented here are as accurate as the printing process will allow, it may be slightly different from actual shades.
This is for your reference ONLY.Please pay attention to the samples we send to you.

REQUEST FOR TECHNICIAL SUPPORT AND CONSULTATION

Economical C Grades

CATHAYCOAT™ C grade iron oxides is an economical pigment range for coating applications. With our custom specification manufacturing and our advanced, environmentally safe production, this range of iron oxide products provides another choice for excellent cost-performance ratio.

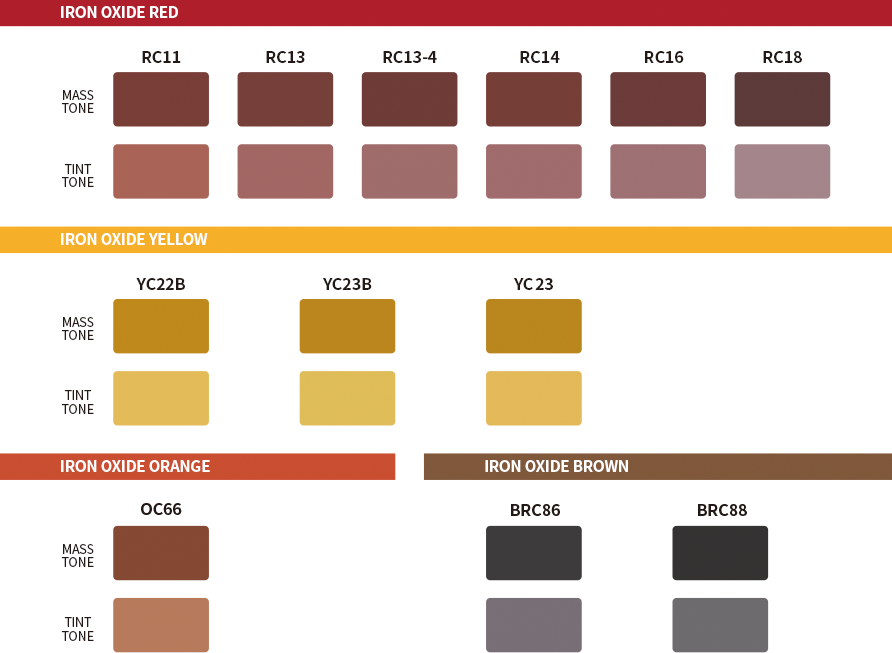

C Grades Colors Represent Mass Tone and Tint Tone (Reduction with TiO2 1:4)

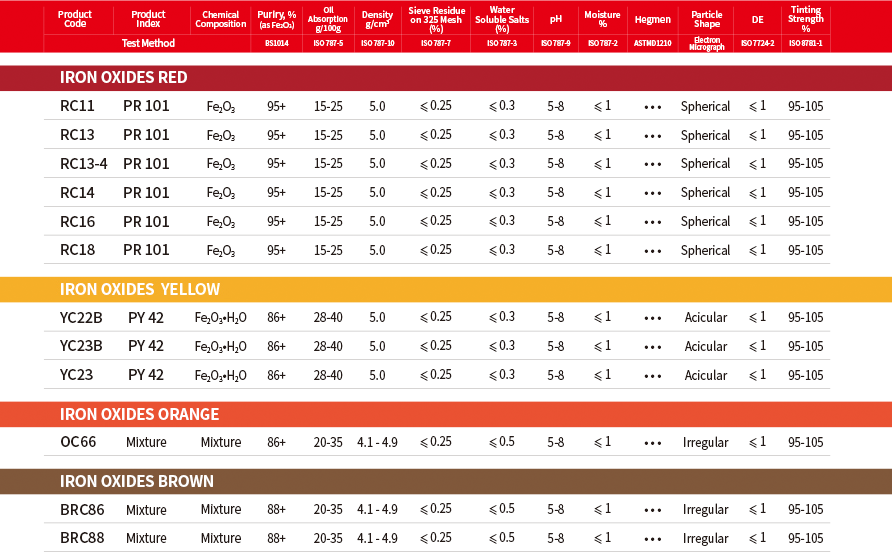

Typical Physical Properties (Standard S Grades)

The color chips represented here are as accurate as the printing process will allow, it may be slightly different from actual shades.
This is for your reference ONLY.Please pay attention to the samples we send to you.

REQUEST FOR TECHNICIAL SUPPORT AND CONSULTATION

Low Viscosity Yellow

CATHAYCOAT™ LV grade is a unique yellow iron oxide pigment that provides extra-low viscosity in the final dispersion, even at the highest pigment loading. ( *ELV is Market Standard )

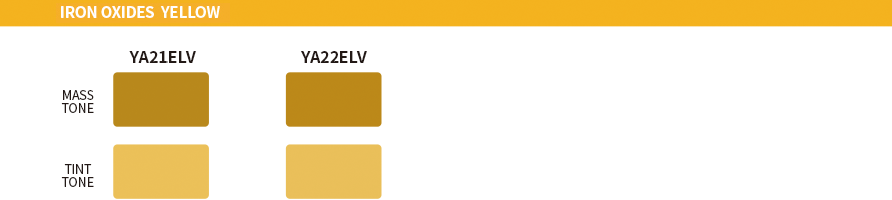

LOW VISCOSITY Iron Oxide Yellow Colors Represent Mass Tone and Tint Tone (Reduction with TiO2 1:4)

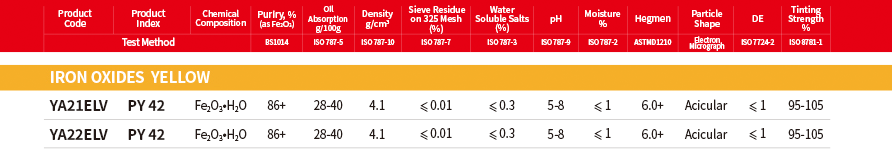

Typical Physical Properties (Micronized A Grade)

The color chips represented here are as accurate as the printing process will allow, it may be slightly different from actual shades.
This is for your reference ONLY.Please pay attention to the samples we send to you.

REQUEST FOR TECHNICIAL SUPPORT AND CONSULTATION

Heat Stable Grade

This is a high-quality heat resistant pigments. They are suitable for demanding and high temperature applications (≥220 ºC), e.g. masterbatches, thermal plastics, coil coatings and powder coatings.

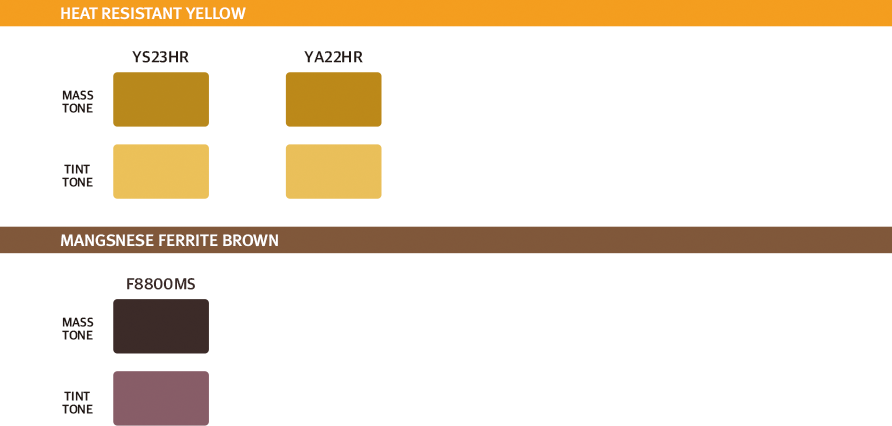

CATHAYCOAT™ Heat Resistant Pigment Colors Represent Mass Tone and Tint Tone (Reduction with TiO2 1:4)

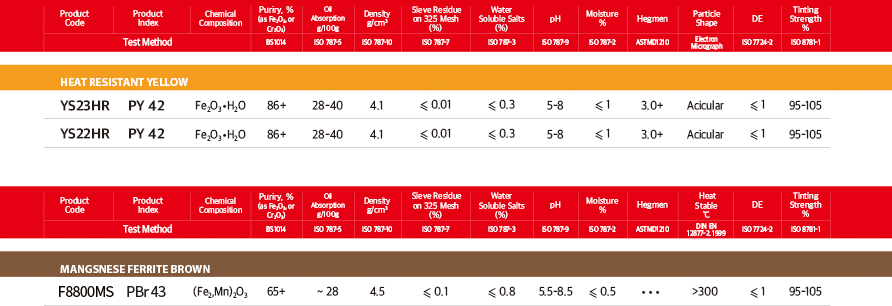

Typical Physical Properties (Heat Resistant Pigment)

The color chips represented here are as accurate as the printing process will allow, it may be slightly different from actual shades.

REQUEST FOR TECHNICIAL SUPPORT AND CONSULTATION

Concrete - Asphalt Grade

FLOWTINT™ is a range of cost-effective, specially treated free-flowing powder, which is unique to CATHAY INDUSTRIES. The products can be used in automated dosing systems and have significant advantages over traditional powders. They have low-dust, improved-flow and non-caking characteristics for optimal dosing accuracy.

Cathay Colours are :

  • Lightfast
  • Colour consistent
  • UV stable
  • Weather resistant
  • Alkali and mild acids resistant
  • Chemically inert
  • Insoluble in water
  • Non hazardous
  • Synthetic
  • Excellent dispersibility

Concrete-Asphalt Grade

Wide Range of Applications

Cathay metal oxide pigments are extremely versatile and a highly effective method of adding vibrant colour to a wide range of products including pigment paste, printing ink, industrial coating, powder coating, wood lacquer, automotive and marine paint, architectural paints, plastic, concrete roof tiles, wall tiles, pavers, bricks, masonry, ready mixed concrete as well as asphalt for paths and driveways.

Superior Quality and Performance

As one of the market leaders in the field of iron oxide technology, Cathay Pigments Group use only the finest quality materials and most advanced manufacturing processes for the Cathay range of pigments. Across the Cathay range, our products deliver the highest levels of colour strength and lightfastness. Our proven quality procedures ensure that each batch matches perfectly for accurate colour consistency. At each of Cathay pigment's manufacturing sites, testing laboratories with advanced colour measuring equipment ensure that each batch meets the customer's exact requirements and highest international standards. Our products are supplied with batch identification codes to provide accurate traceability through our quality management systems.

Versatility of Application

Whatever you manufacture, we can work with you to create the colour and effect that best suits your requirements. This can be achieved through detailed discussion, identification of colour influencing factors and samples for on-site trials. In addition, demonstration of pigment performance is available through our laboratory colour matching service.
By combining our knowledge, expertise and capability with your imagination, you can now achieve results that really satisfy your imagination.

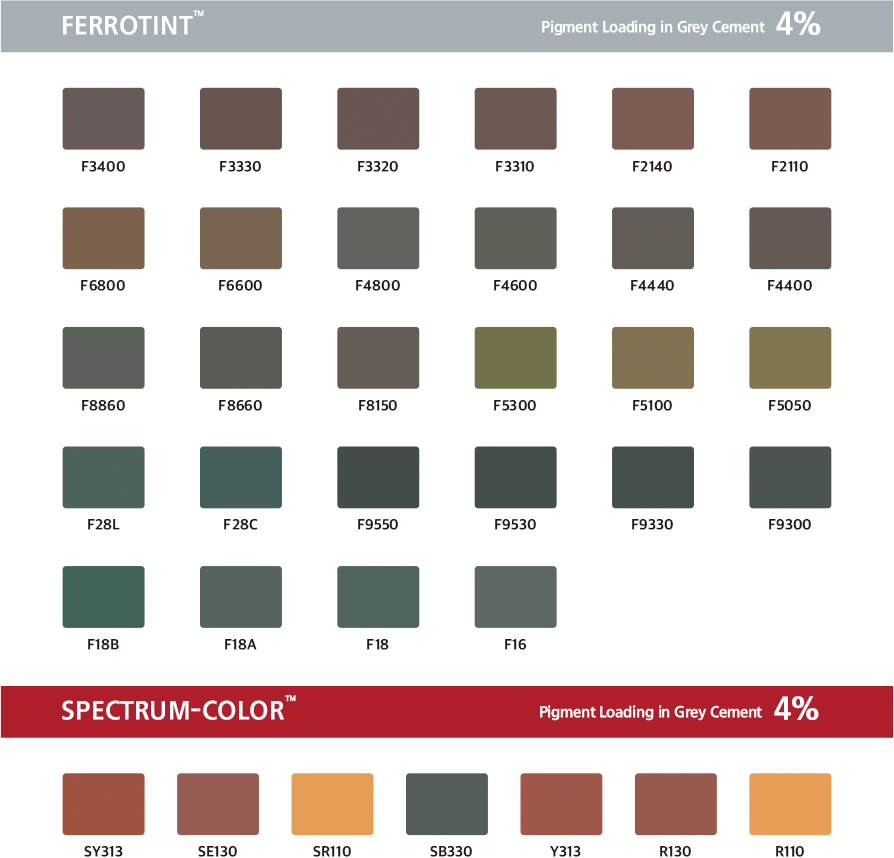

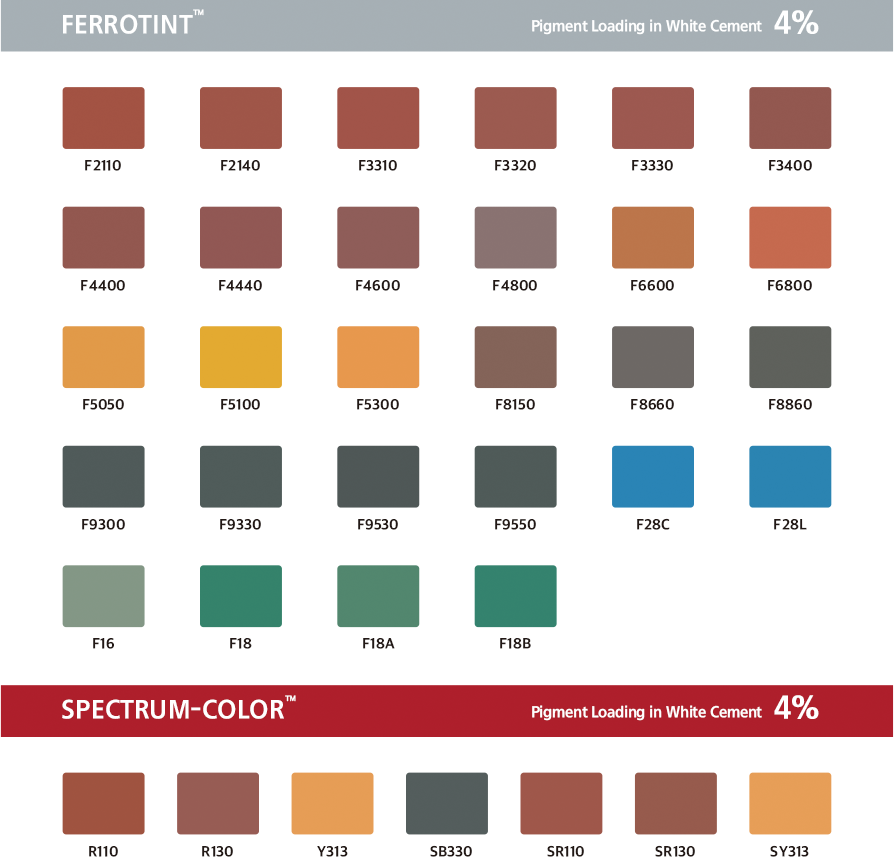

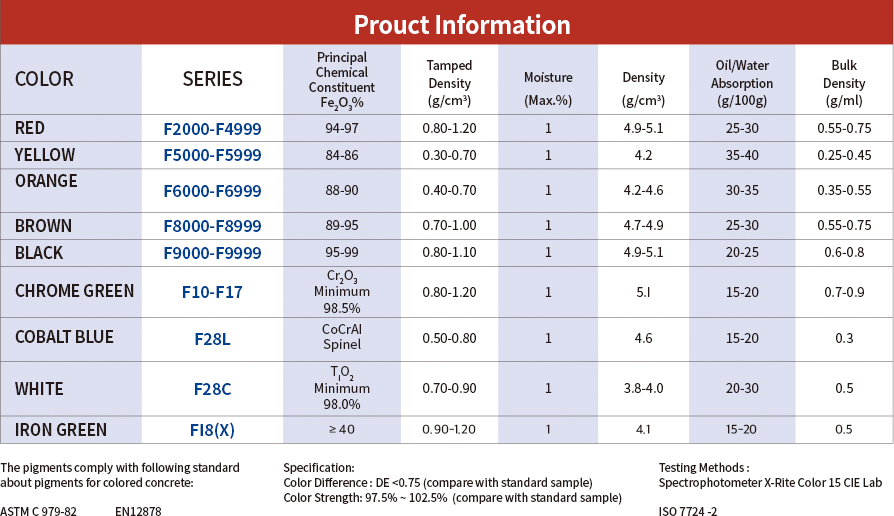

FERROTINT™

The shades shown here are intended as a guide. Concrete color may be influenced by a number of factors including the concrete raw materials, moisture content, curing & finishing techniques, weather condition etc. That are not under our control and we can not guarantee. If necessary, we recommend obtaining representative samples from our regional managers or dealers of CATHAY INDUSTRIES and evaluating samples at first. CATHAY INDUSTRIES will be responsible for the below : guarantee product quality under regarding international standard and meet our obligations under contract.

REQUEST FOR TECHNICIAL SUPPORT AND CONSULTATION

Magnetic lron Oxide

The Key for Magnetic Anti-counterfeiting

Magnetic lron Oxide

Characteristics of product

  • · Excellent orientability with high packing.
  • · Narrow distribution of particles size.

Applications

High quality magnetic ferric oxides is used in the audio and data recording industries as well as in specialty colored toners, anti-counterfeiting inks, transfer ribbons, credit cards and ticket striping.
